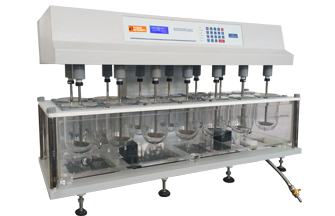

Dissolution Test Apparatus




Features:

  • 14Station (Model -2914)
  • 12Station (Model - 2912)
  • Complies with USP, IP specifications
  • Extremely useful for pharmaceutical labs
  • Programmable stirrer control (25 to 200 RPM)
  • 20x 4 line alphanumeric LCD display with backl it
  • 19Soft touch membrane type keys
  • 20independent programmable setups for routine & sustain mode with storage
  • 200sample storage facility
  • Printer attachment facility
  • Audiovisual indicators for system status
  • Easy to empty and clean water bath with bottom drainage
  • Continuation of last sample run in case of power failure
  • Microprocessor KF Moisture Titrator - 1760 is the finest volumetric titrator available. It uses the latest microcontroller technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts which guide you throughout the titration process. This titrator eliminates the use of conventional delicate and fragile glass burettes and plunger systems. It uses a highly sensitive motorized dispensing system for precise control of titrant volumes. This titrator analyses the moisture concentration of liquid samples, powder, fine particles and fiber samples that are soluble in or solvents. The moisture content is displayed in ppm, %age and mg H2O.

    Microprocessor KF Moisture Titrator - 1760 is the finest volumetric titrator available. It uses the latest microcontroller technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts which guide you throughout the titration process. This titrator eliminates the use of conventional delicate and fragile glass burettes and plunger systems. It uses a highly sensitive motorized dispensing system for precise control of titrant volumes. This titrator analyses the moisture concentration of liquid samples, powder, fine particles and fiber samples that are soluble in or solvents. The moisture content is displayed in ppm, %age and mg H2O.

    Specifications

    GENERAL

    Stations

    14 stations in Model - 2914

    12 stations in Model - 2912

    Display

    20 x 4 line alphanumeric LCD display with back list

    Keyboard

    19 soft touch membrane type keys

    LED's

    4 LED's for different status indications. 3 LED's for test status
    like Run, Alarm, End & 1 LED for heater ON/OFF status

    Setup Data

    20 different test setups available in routine and sustain modes

    Printer Attachment

    Provision for the attachment of dot-matrix printer with centronics parallel port interface available

    STIRRER

    Speed

    25 to 200 RPM +1 RPM

    Resolution

    1 RPM

    Accuracy

    + 1 RPM

    TEMPERATURE

    Range

    30 to 50oC

    Accuracy

    + 0.2oC

    Temp. Control

    Microprocessor based using PT100/ Semiconductor sensor as per IP/USP

    SAMPLE

    Reaction Vessel

    Air Supply

    1000 ml jar with stirrer pedal and basket

    Heater

    1900 W

    Power

    230 V + 10%, 50 Hz. AC

    Note : Specificationsare subject to change due to continuous improvements.
